AutoGrader

Live:

Use the AutoGrader here: autograder.fly.dev

The Problem with Grading at Scale

Last semester I was the Head TA for Embedded Machine Learning at CMU. The course had 50+ students submitting open-ended coding assignments — Jupyter notebooks, Python scripts, PDF reports — every week. Grading was the bottleneck. Each submission required carefully reading through student code, cross-referencing against a rubric, and writing justifiable feedback. With a small TA team, we were spending more time grading than teaching.

The issue wasn’t just speed. It was consistency and transparency. Different TAs interpreted rubrics differently. Students would ask “why did I lose points here?” and sometimes the answer wasn’t clear, even to us. I wanted a system that could help grade faster while making every scoring decision fully traceable back to the student’s own work.

So I built AutoGrader.

The Core Idea: AI Grading That Cites Its Work

Most AI grading tools treat the model as a black box: feed in a submission, get back a score. The problem is trust. If a student disputes a grade, you need to point to exactly what they wrote and explain why it earned or lost points.

AutoGrader enforces a simple rule: every score must be grounded in the student’s submission. The AI cannot award or deduct points without citing its evidence. This makes the entire grading process auditable — every decision has a paper trail.

How It Works

Under the hood, AutoGrader runs a three-stage pipeline:

Stage 1: Extract

Student submissions come in all shapes — PDFs, Jupyter notebooks, Python files, Canvas exports, Markdown. The extraction stage uses a dual OCR approach: Mistral AI produces rich markdown representations of the content, while PyMuPDF generates deterministic source maps with block-level bounding boxes. Together, they turn any submission into structured, navigable content with precise source references down to the page and line level.

Stage 2: Judge

An LLM scores the extracted content against the instructor’s rubric, category by category. The key constraint: for every score assigned, the model must provide exact quotations (capped at 250 characters each) from the submission as evidence, along with explicit reasoning and a calibrated confidence level. If the model can’t find sufficient evidence to justify a score, it flags the category as low-confidence rather than guessing.

Stage 3: Calibrate

Before finalizing scores, the system applies any learned grading policies — rules extracted from past TA corrections. These are IF/THEN policies (e.g., “IF the student uses hardcoded values instead of deriving from data shape, THEN deduct 2 points from Style & Clarity”). Only rules meeting a minimum confidence threshold are applied, keeping calibration targeted and defensible.

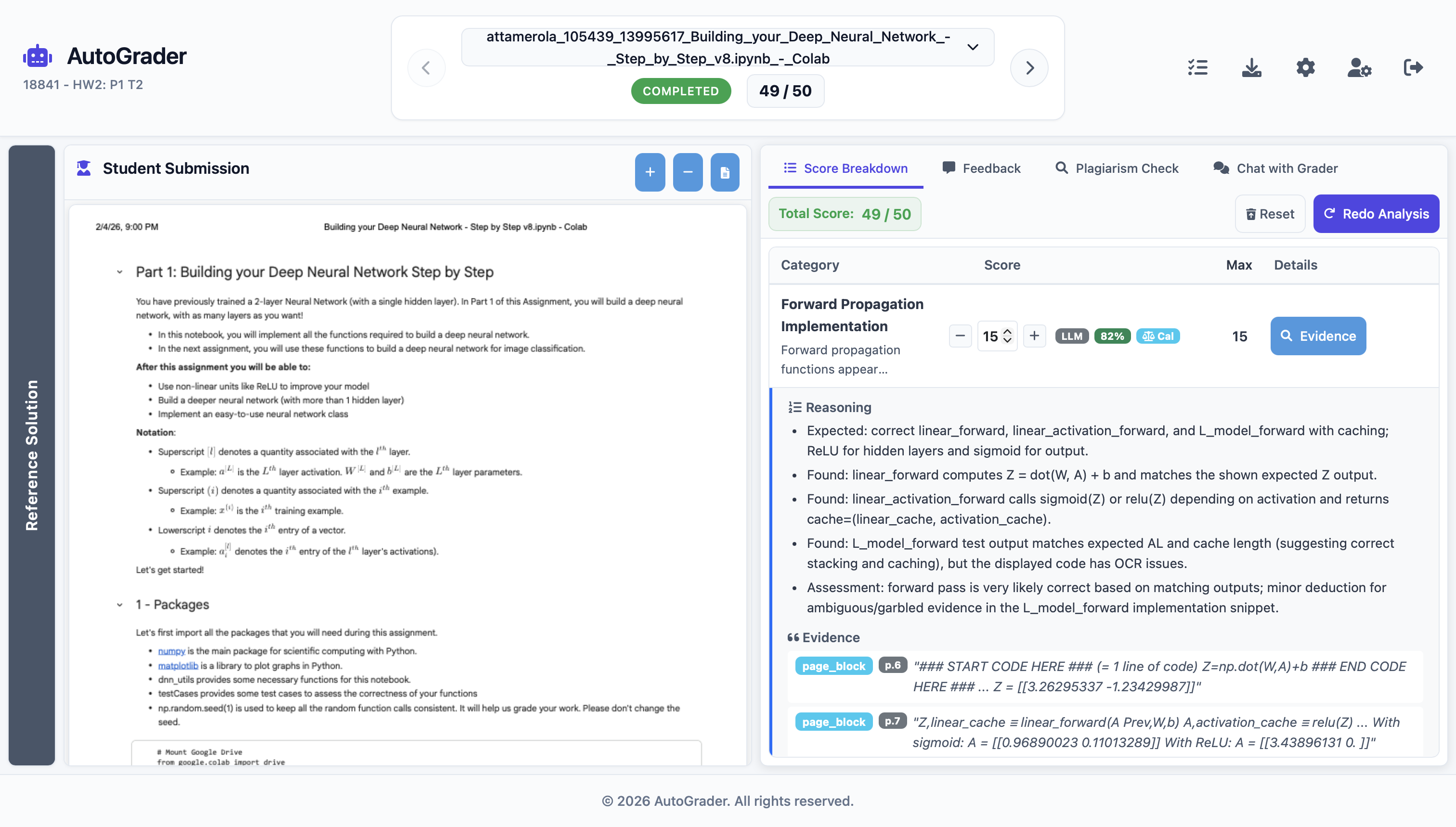

The Human-in-the-Loop Workstation

AutoGrader is designed to augment TAs, not replace them. The grading interface is a three-panel workstation: the reference solution on the left, the student’s submission rendered in its native format in the center, and the grading console on the right — with editable per-category scores, expandable evidence trails, structured feedback, and plagiarism analysis.

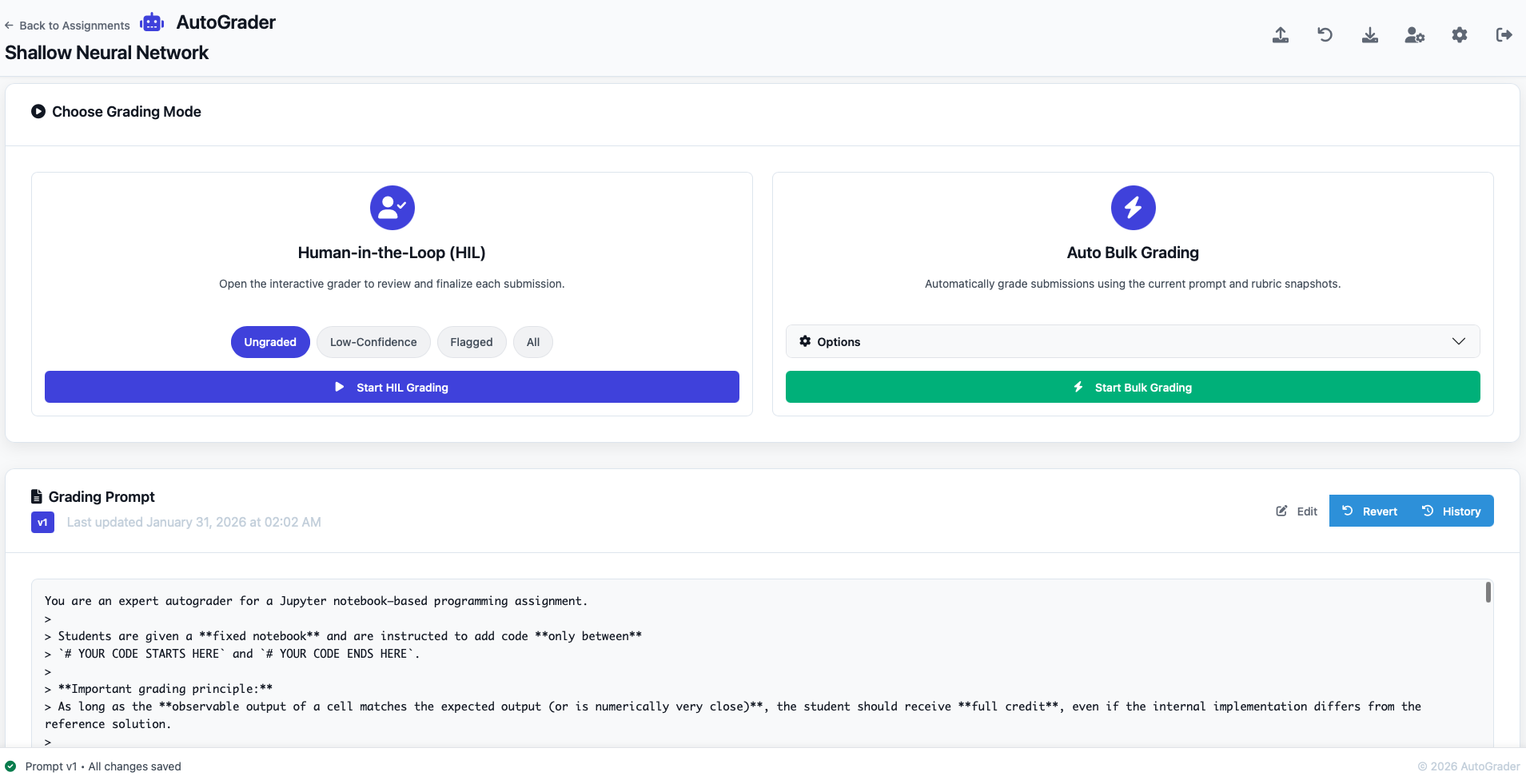

TAs can choose between Human-in-the-Loop mode (review each submission interactively) and Auto Bulk Grading (grade an entire section automatically, then review flagged or low-confidence submissions).

Policy Learning: The System Gets Smarter Over Time

This is probably the most interesting part. When a TA overrides an AI-assigned score and provides a reason, the system doesn’t just accept the correction — it learns from it. A background process extracts generalizable IF/THEN rules from the override and stores them as grading policies with severity, confidence, and instance count metadata.

These policies are automatically enforced in subsequent grading runs. Over time, the system converges toward the instructor’s grading style. In practice, we observed a 68% decline in override rates after just a few grading cycles — the system was picking up on patterns like notation conventions, common partial-credit scenarios, and edge cases that the original rubric didn’t explicitly address.

Rules are capped at 50 per assignment and 200 per course to prevent proliferation, and each rule accumulates confidence through repeated application.

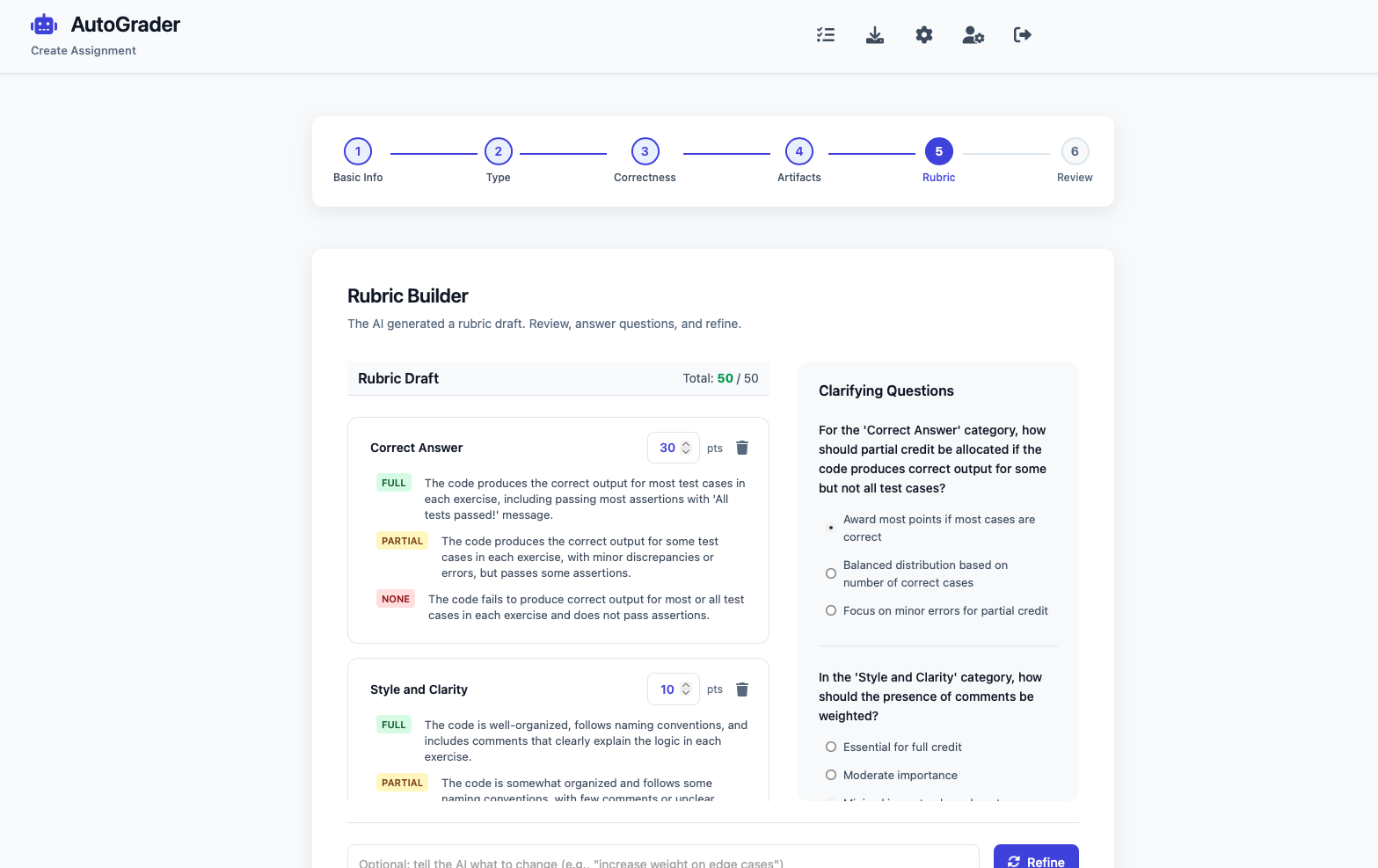

AI Rubric Builder

Setting up an assignment is guided by a step-by-step wizard. Instructors specify the assignment type, upload reference solutions, and answer a few clarifying questions generated by the AI. The system then produces a full rubric draft with per-category scoring criteria at the FULL, PARTIAL, and NONE levels — ready to use or refine.

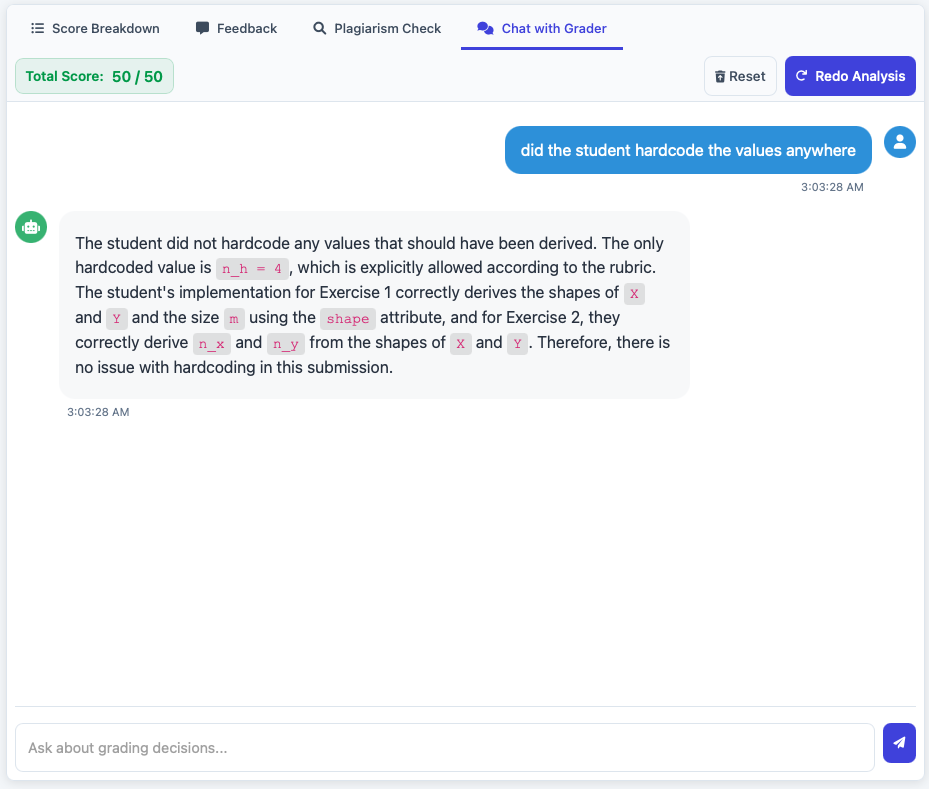

Chat with the Grader

Sometimes you want to ask a follow-up question about a specific submission without re-running the entire analysis. AutoGrader includes a conversational AI console where TAs can ask natural-language questions about any submission — “did the student hardcode the values anywhere?”, “is the loss function implemented correctly?” — and get responses grounded in the actual submission content.

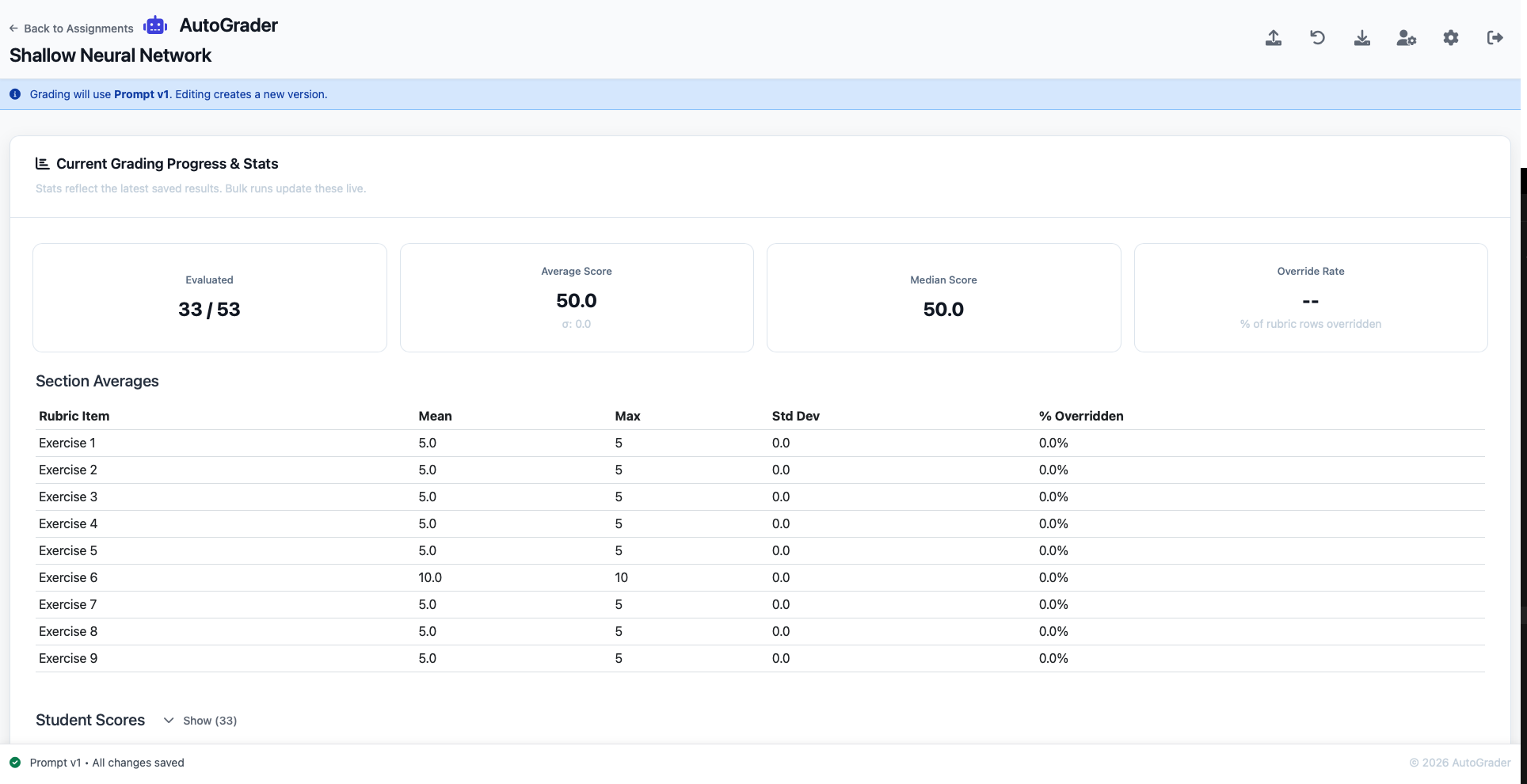

Results and Impact

AutoGrader was deployed for active use in courses at Carnegie Mellon University across the ECE and CS departments.

Key metrics from deployment:

• 87% reduction in time spent grading per assignment
• 94% agreement rate with expert human graders
• 100% of scores backed by cited evidence from student submissions
• 6+ submission formats supported (PDF, Jupyter, Python, Canvas, HTML, Markdown)

Tech Stack

Python/Flask backend with real-time WebSocket connections for live pipeline progress. OpenAI GPT models for grading and Mistral AI for OCR. PostgreSQL (Neon.tech) for the database, Firebase for cloud file storage, and Bcrypt + Fernet encryption for security. Deployed on Fly.io via Docker.
