Architecture¶

PulseLoop is built local-first: data flows up from the ring into local storage on your phone, the coach reads sideways through tools, and the only thing that ever leaves the device is a coach question you explicitly choose to ask.

System architecture¶

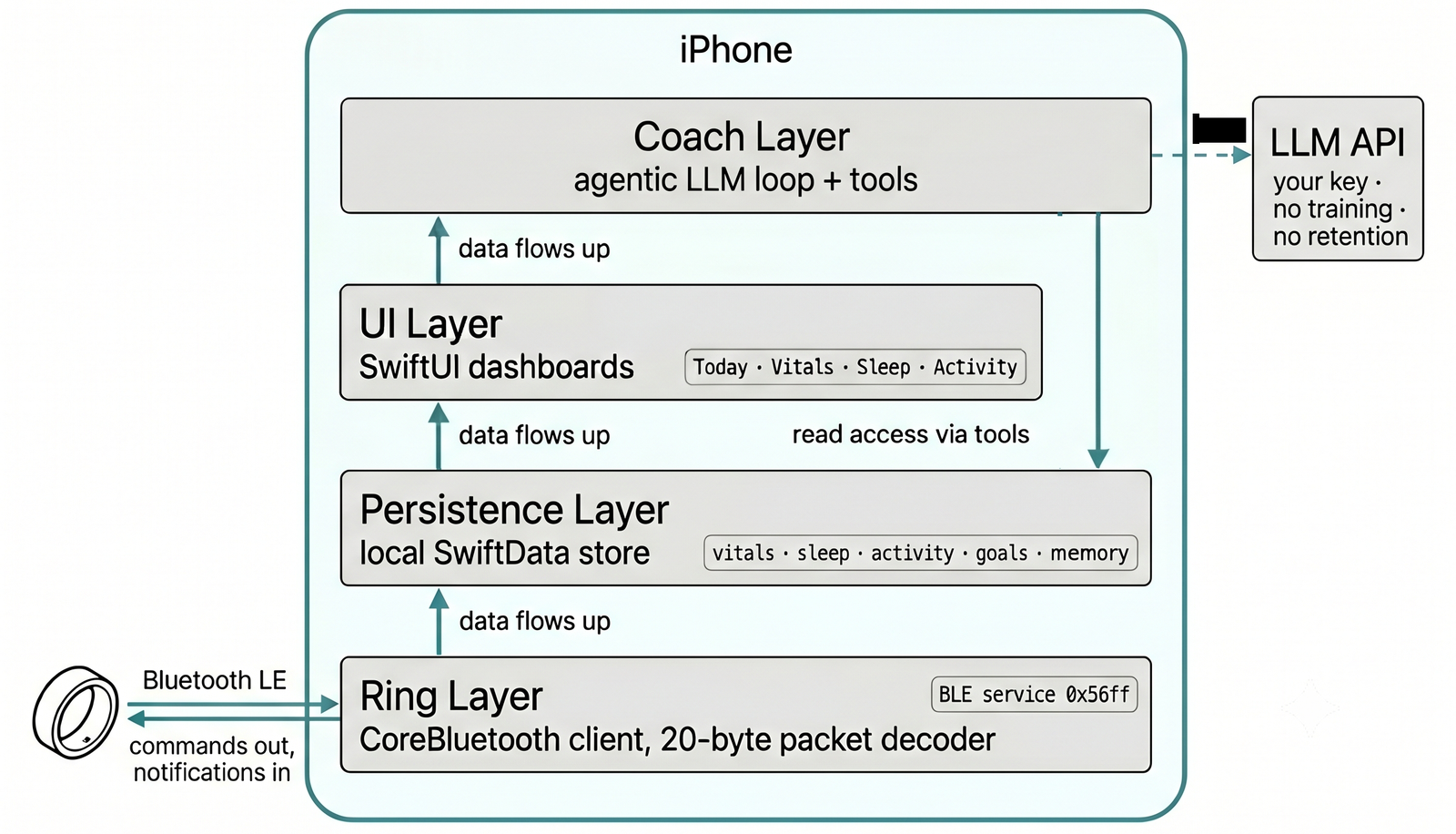

Four layers on the phone. Data flows up from the ring into local storage; the coach reads sideways through tools, and the only thing that leaves the device is a coach question you choose to ask.

System architecture

The ring link¶

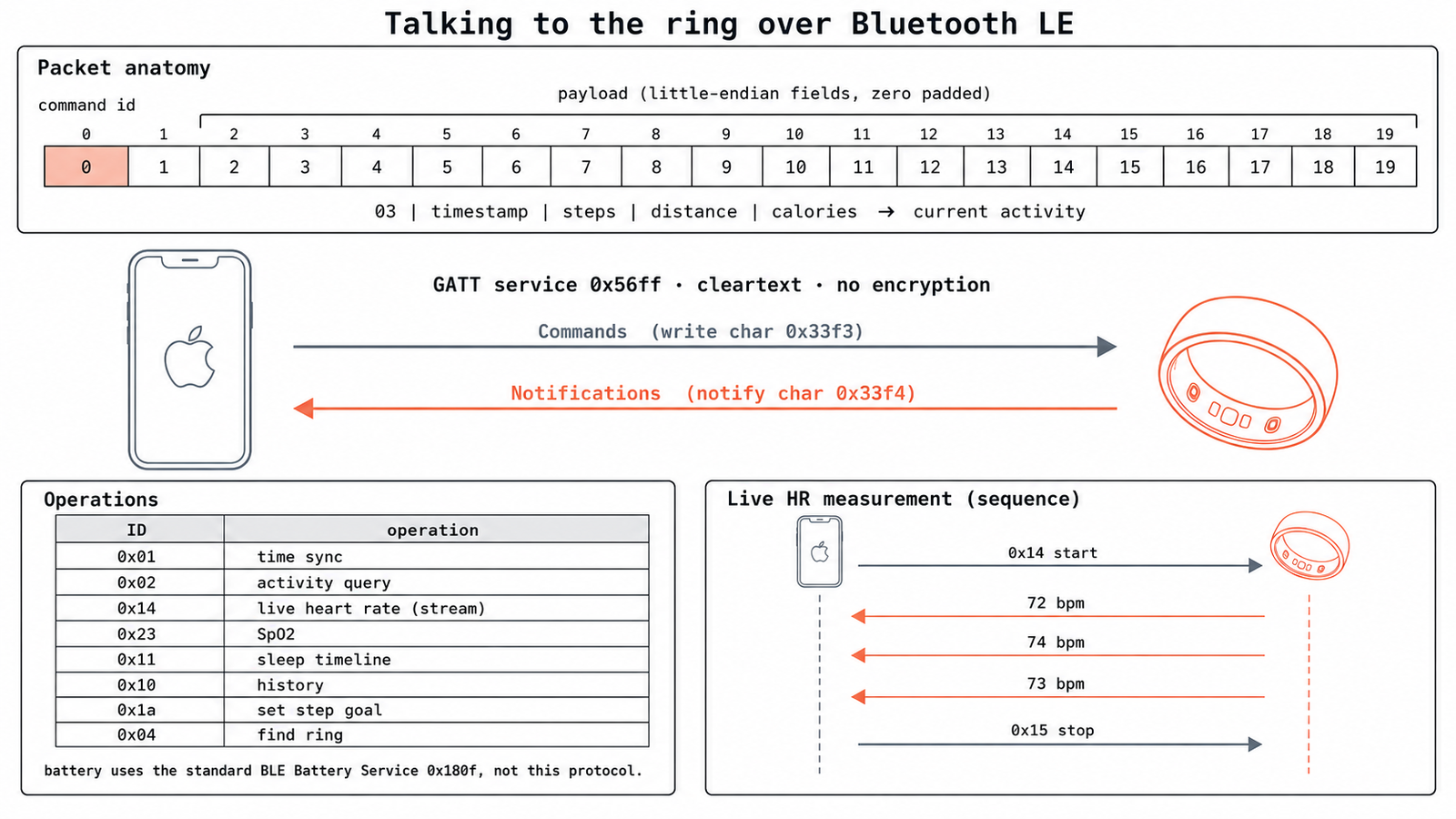

One custom BLE service, fixed 20-byte cleartext packets, commands out and notifications back.

Ring interaction

The AI coach¶

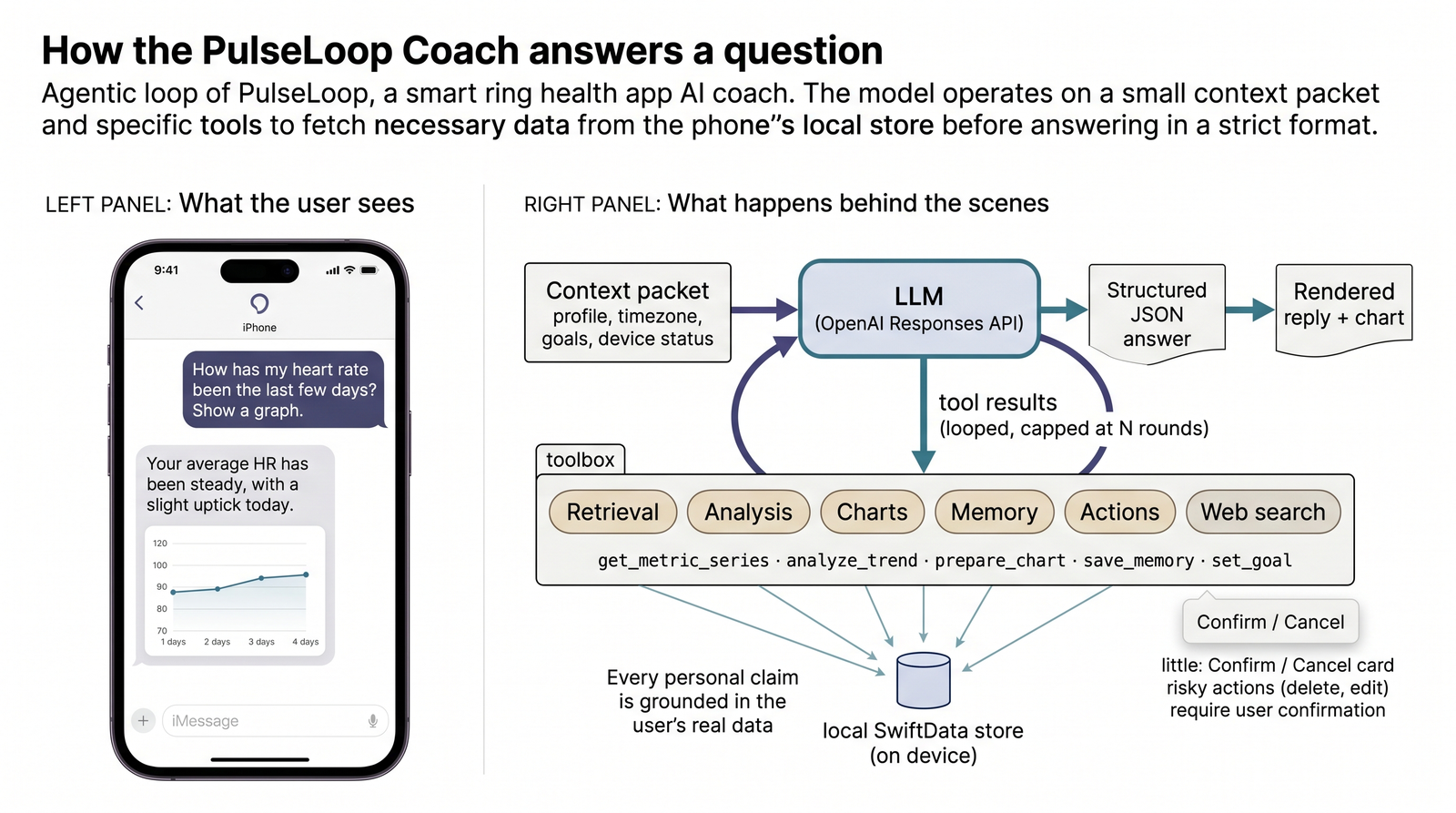

An agentic loop that calls tools to read your local data, then answers in a structured format. Every answer is grounded in your actual ring data.

AI coach design

iOS project layout¶

PulseLoop/
├─ RingProtocol/      BLE client + packet decoding for the ring
├─ Models/            SwiftData models (vitals, sleep, activity, coach)
├─ Services/          Sync, workouts, GPS, derived summaries
├─ Coach/             The LLM coach: orchestration, tools, prompts, notifications
│  ├─ Orchestration/  Agentic turn loop, tool execution, fallbacks
│  ├─ Tools/          Retrieval, analysis, charts, memory, web search, actions
│  ├─ OpenAI/         Responses API client
│  ├─ Gemini/         Google Gemini client
│  ├─ OpenRouter/     OpenRouter client (many models via one key)
│  ├─ Apple/          On-device Foundation Models client
│  └─ Notifications/  Daily AI check-ins
├─ Views/             SwiftUI screens (Today, Vitals, Sleep, Activity, Coach)
└─ DesignSystem/      Charts, components, theming

PulseLoopLiveActivity/  Live Activity + Dynamic Island widget
PulseLoopTests/         Unit tests

Same data flow, two stacks¶

Both ports map the same data flow onto their native platform stack. The ring protocol layer is the shared core; everything above it is platform-native.

Layer	iOS	Android
UI	SwiftUI	Jetpack Compose + Material 3
Persistence	SwiftData	Room (SQLite)
BLE	CoreBluetooth	`android.bluetooth.le`
HTTP	URLSession	OkHttp
Key storage	Keychain	EncryptedSharedPreferences
Background work	BGTaskScheduler	WorkManager
Live Activity	WidgetKit / Dynamic Island	ForegroundService + notification
Charts	Swift Charts	Custom Compose Canvas
Maps	MapKit	Canvas polyline
Event bus	NotificationCenter	SharedFlow
Notifications	UNUserNotificationCenter	NotificationManager + WorkManager

For the full feature-level breakdown between the two ports, see iOS vs Android. For the on-the-wire ring protocol, see Supported Rings.
